Interwood HOP Veneer press

The Interwood HOP Veneer Press is an upstroke machine pressing platen which operates from bottom to top.

It is used for veneering chip board and MDF panels, laminate panels, bath room panels, security doors, flush doors, composite light weight panels popular in the aircraft industry and caravan panels.

This HOP Veneer press uses heat to cure the adhesive.

All presses fitted with 40mm solid platens 3100 x 1550 and 2500 x 1300 in stock in the UK

Heated Hydraulic veneer press with 40mm solid steel platens

This machine has solid steel platens not fabricated like many other makes

10 x 5 (3100 x 1550mm) £26,995.00 + Vat

8 x 4 (2500 x 1300mm) £24,500.00 + Vat

If you have already had a quotation from one of our competitors please check it is the same specification as the Interwood press

Interwood HOP Veneer press technical details

• Solid Steel Ground and Drilled Platens Thickness 40 m/m
• Platen faces covered with detachable Mylar Film
• Maximum Daylight (Single Daylight) 300 m/m
• Maximum Daylight (Multi Daylight) 100 m/m
• Diameter of rams 85 m/m
• Maximum Pressure 120Tons

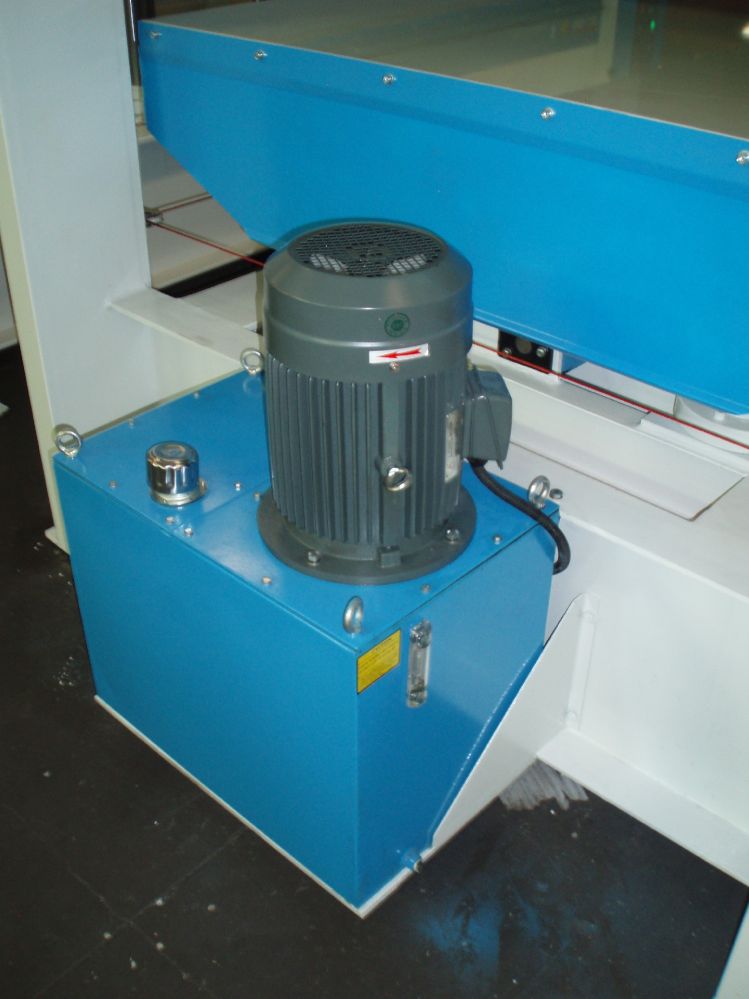

• Hydraulic Power Pack 7.5 kw
• Automatic Opening with timer 60 Min
• Double switched Safety Trip Wire
• Closing Speed per mm per Second 20

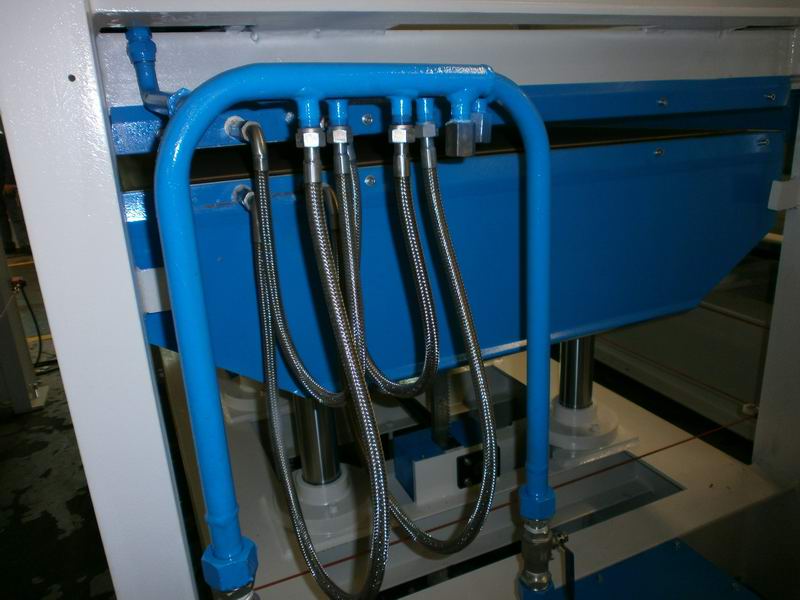

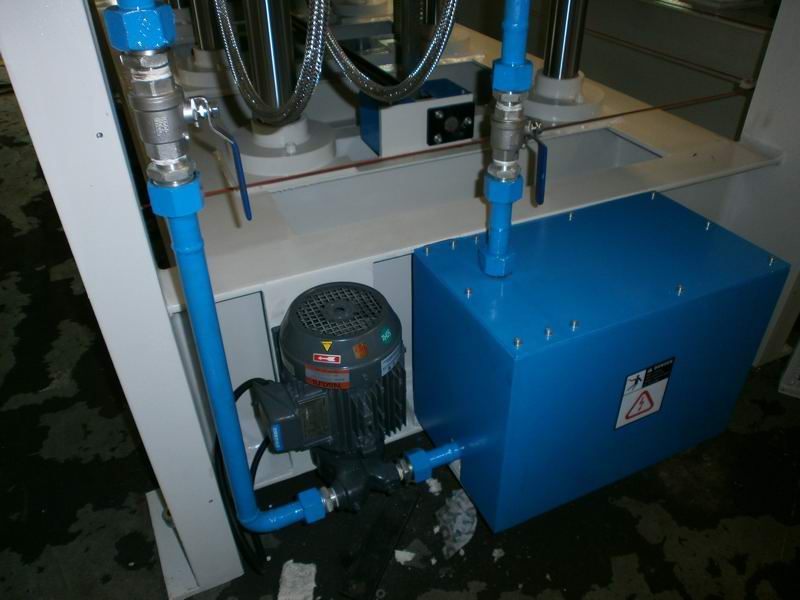

• Heating Power: Oil heater and Circulation System Powers
• Single Daylight 36kw
